Steel Flexible Conduits & Fittings

Steel Flexible Conduits & Fittings provide strong, flexible cable protection with superior                       mechanical strength for safe and reliable electrical installations.

EMT Conduit Pipes

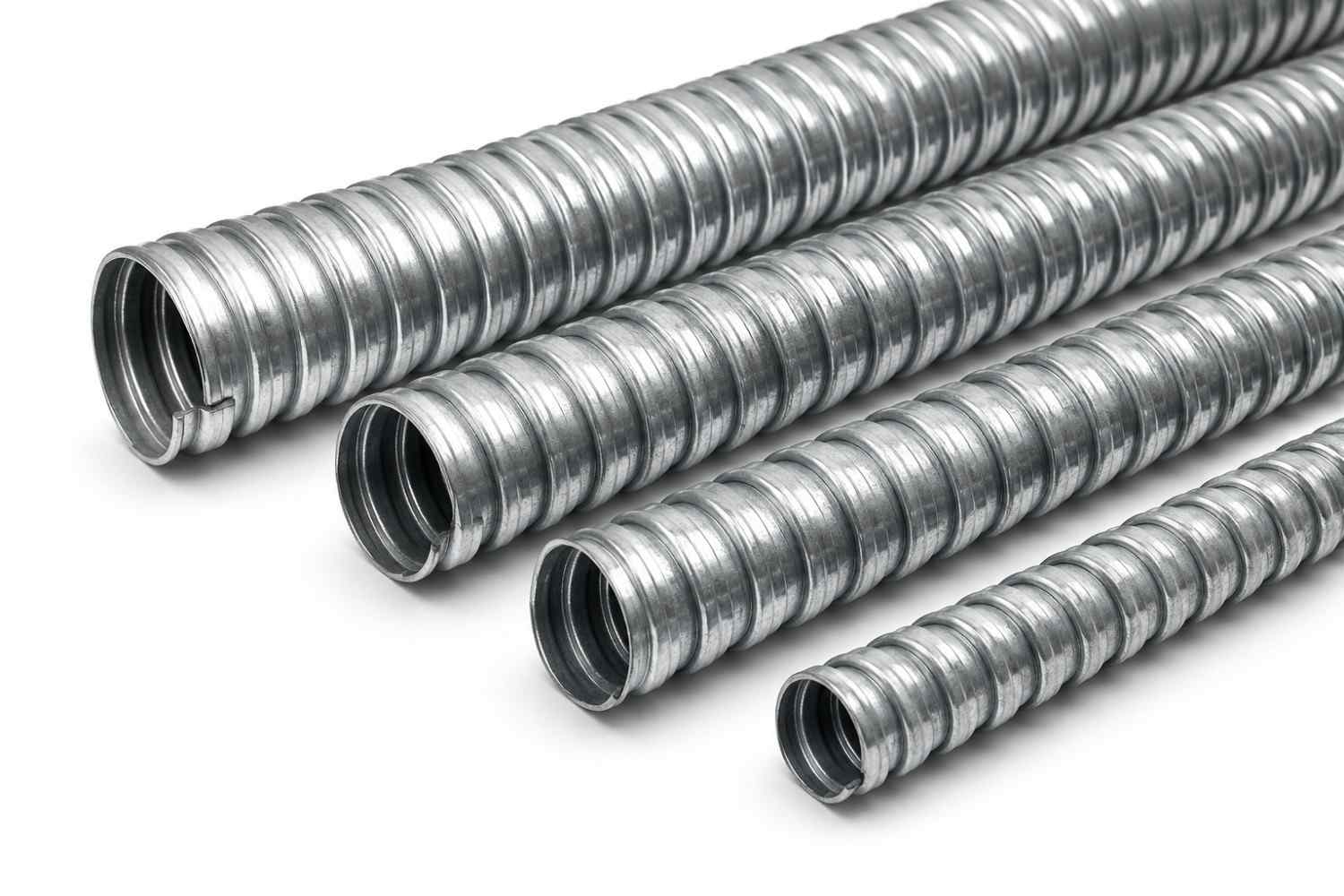

Galvanized Flexible Steel Conduit

The Liquid Tight Flexible Conduit is manufactured from galvanized steel with a PVC jacket for superior durability and resistance to moisture, oil, dust, and corrosion. Available in 100 m, 50 m, 30 m, 15 m, and 10 m coil lengths and black or grey colors, it comes in sizes ranging from 3/8 inch to 6 inches, providing reliable protection and flexible cable routing for demanding electrical installations.

EMT Elbows

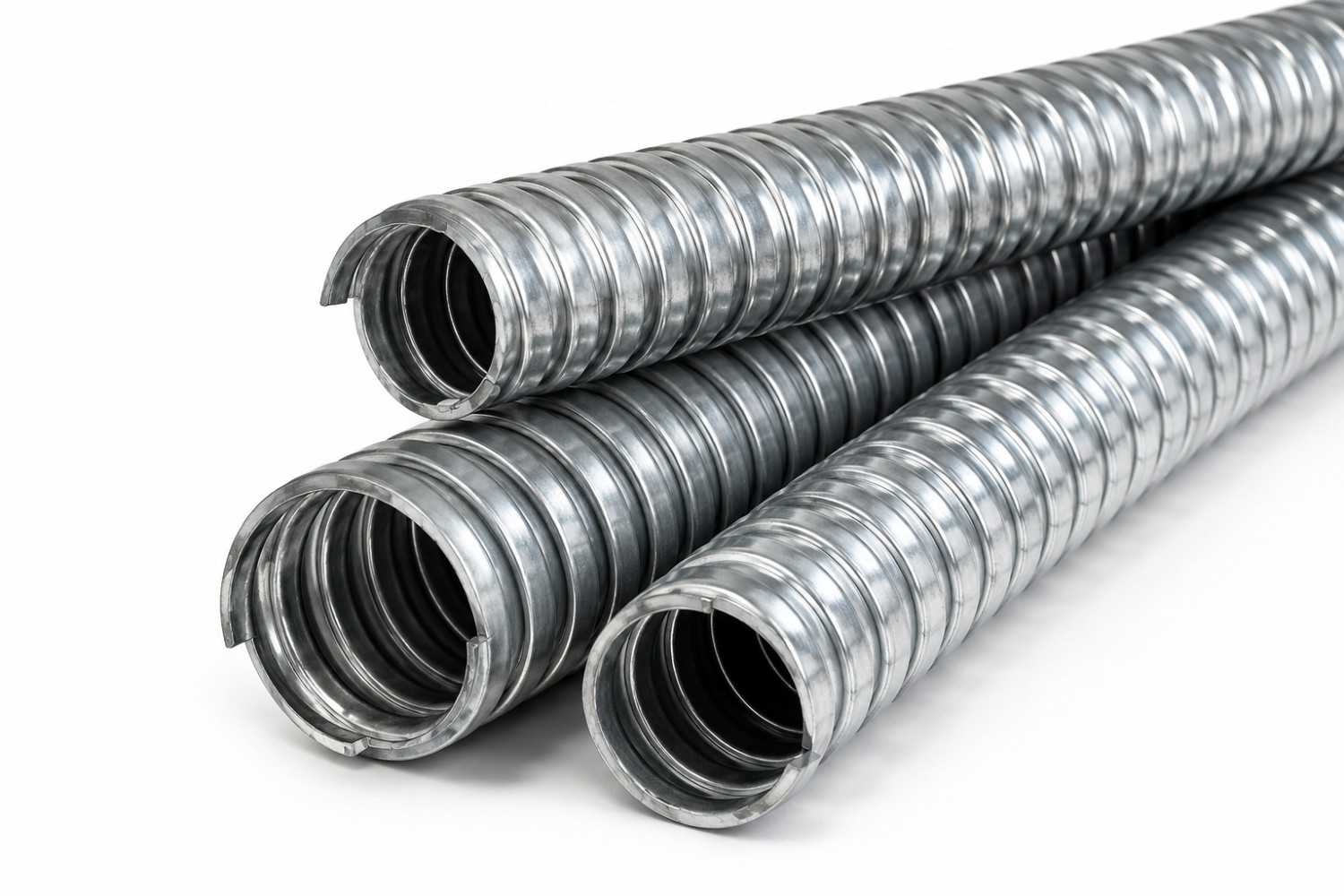

US Type Flexible Steel Conduit

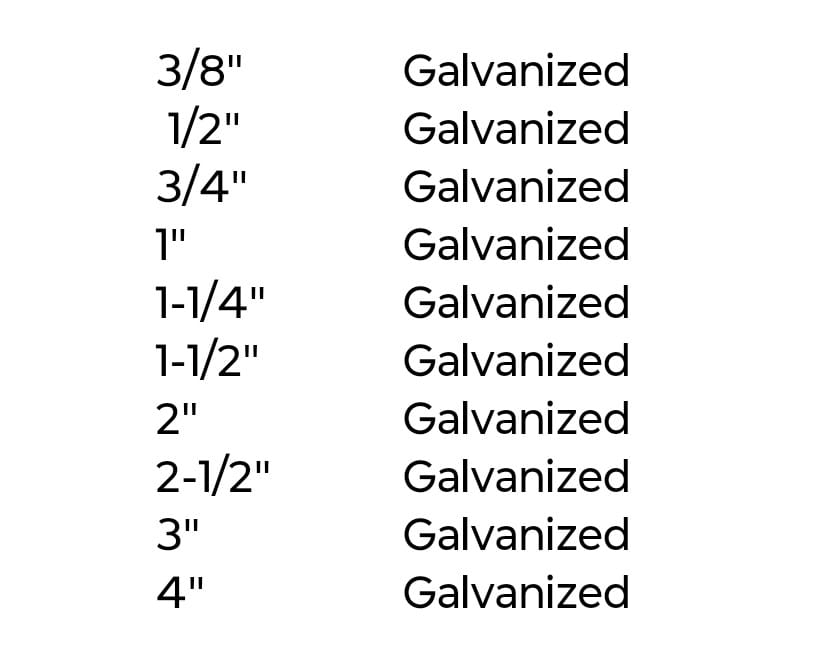

US Type Flexible Steel Conduit is manufactured from high-quality steel with a galvanized finish for excellent strength and corrosion resistance. Available in 100 m, 50 m, 30 m, 15 m, and 10 m coil lengths and sizes ranging from 3/8 inch to 4 inches, it provides superior flexibility and reliable mechanical protection for electrical wiring in residential, commercial, and industrial applications.

Set Screw Connectors

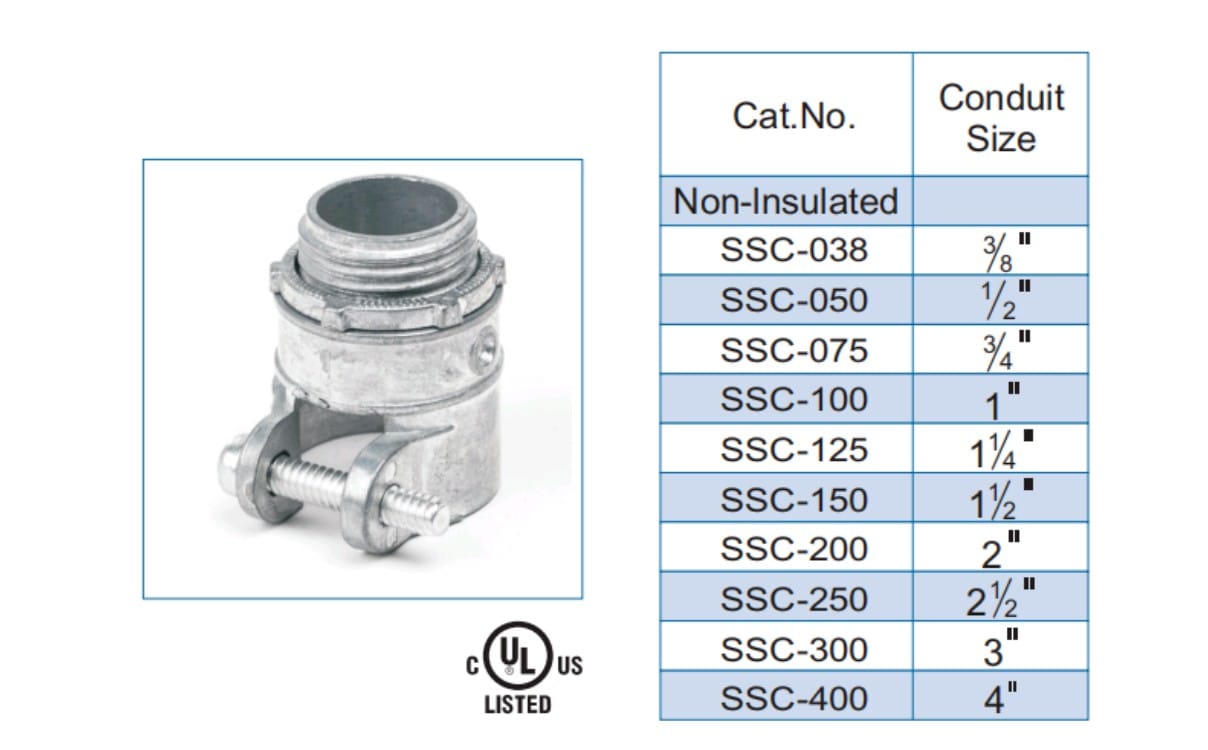

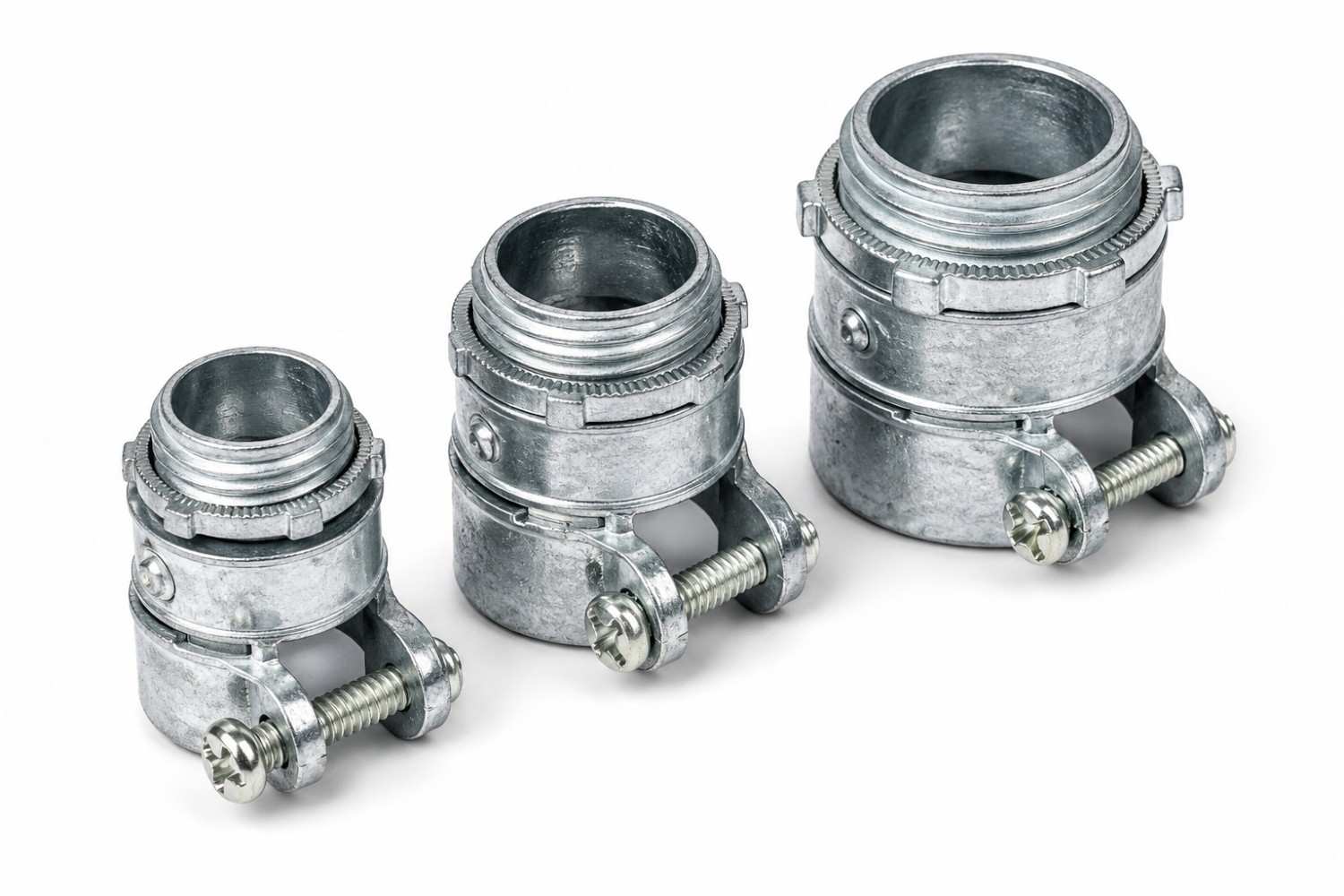

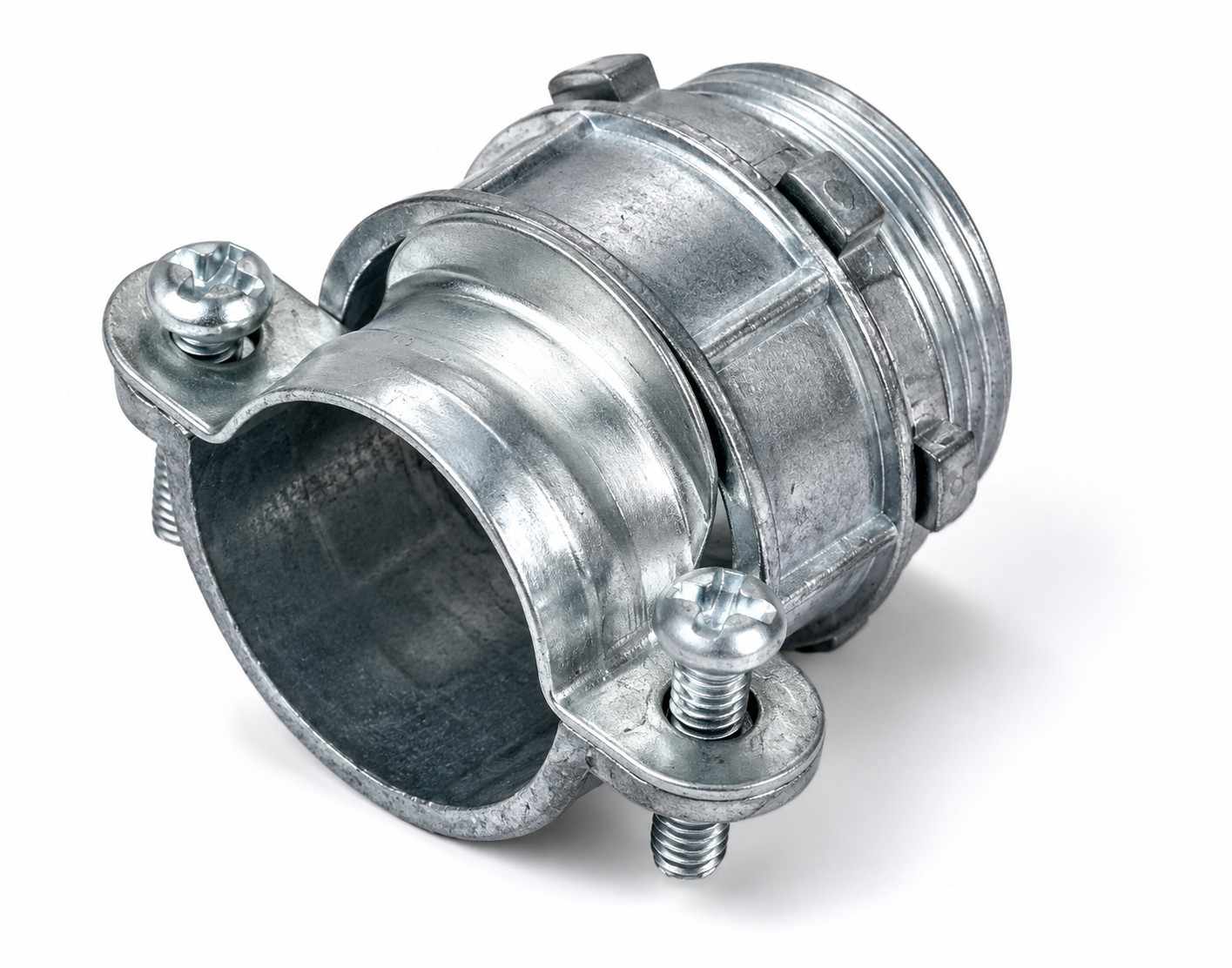

Straight Squeeze BX Connector

The Straight Squeeze BX Connector is manufactured from zinc die-cast with a galvanized finish for excellent durability and corrosion resistance. It features an un-insulated design, NPT threads, and is manufactured in accordance with UL 514B standards. Available in sizes ranging from 3/8 inch to 4 inches, it provides a secure and reliable connection for flexible metal conduit systems.

Set Screw Couplings

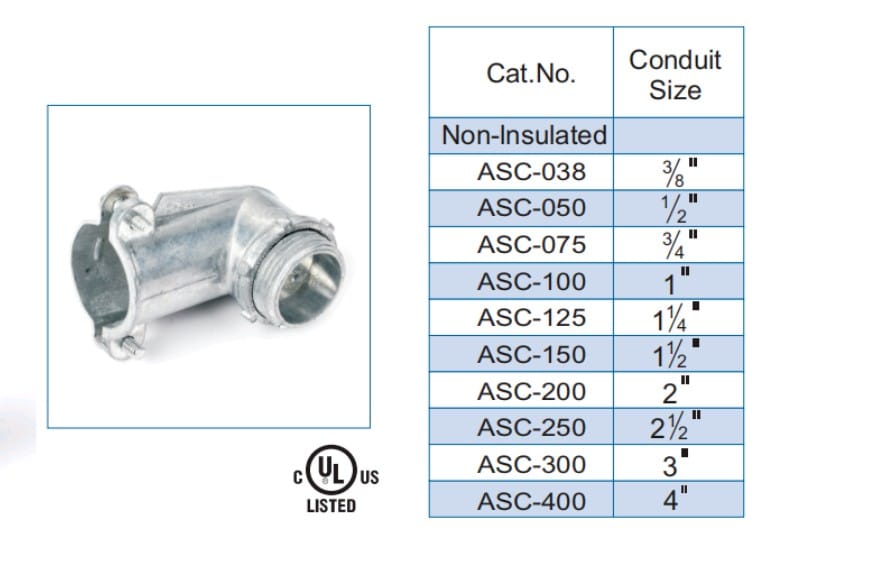

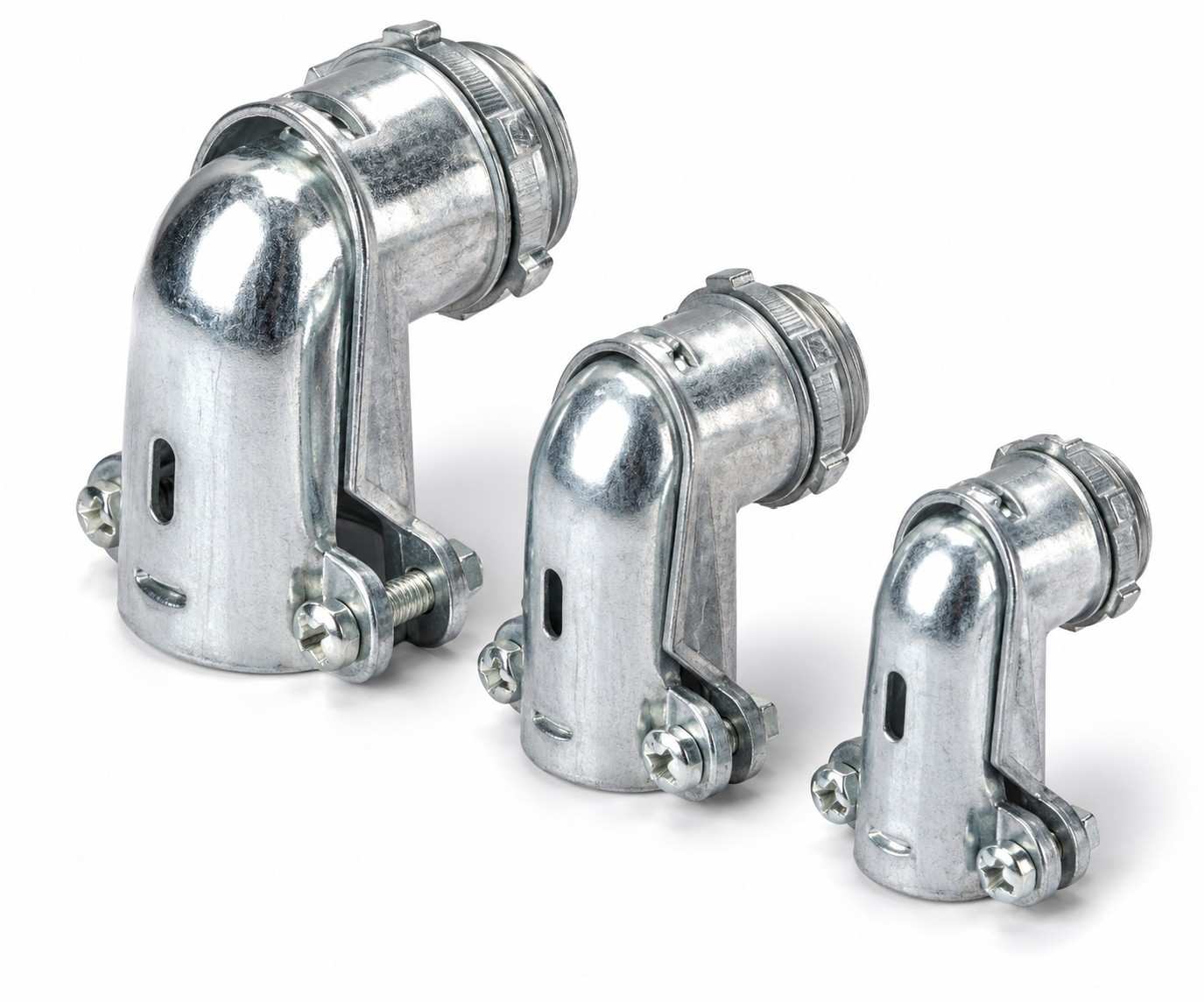

90° Squeeze Connector

The 90° Squeeze Connector is manufactured from zinc die-cast for excellent durability and corrosion resistance. It features a non-insulated design, NPT threads, and is manufactured in accordance with UL standards. Available in sizes ranging from 1/2 inch to 4 inches, it provides a secure and reliable 90° connection for galvanized flexible conduit systems.

Compression Connectors

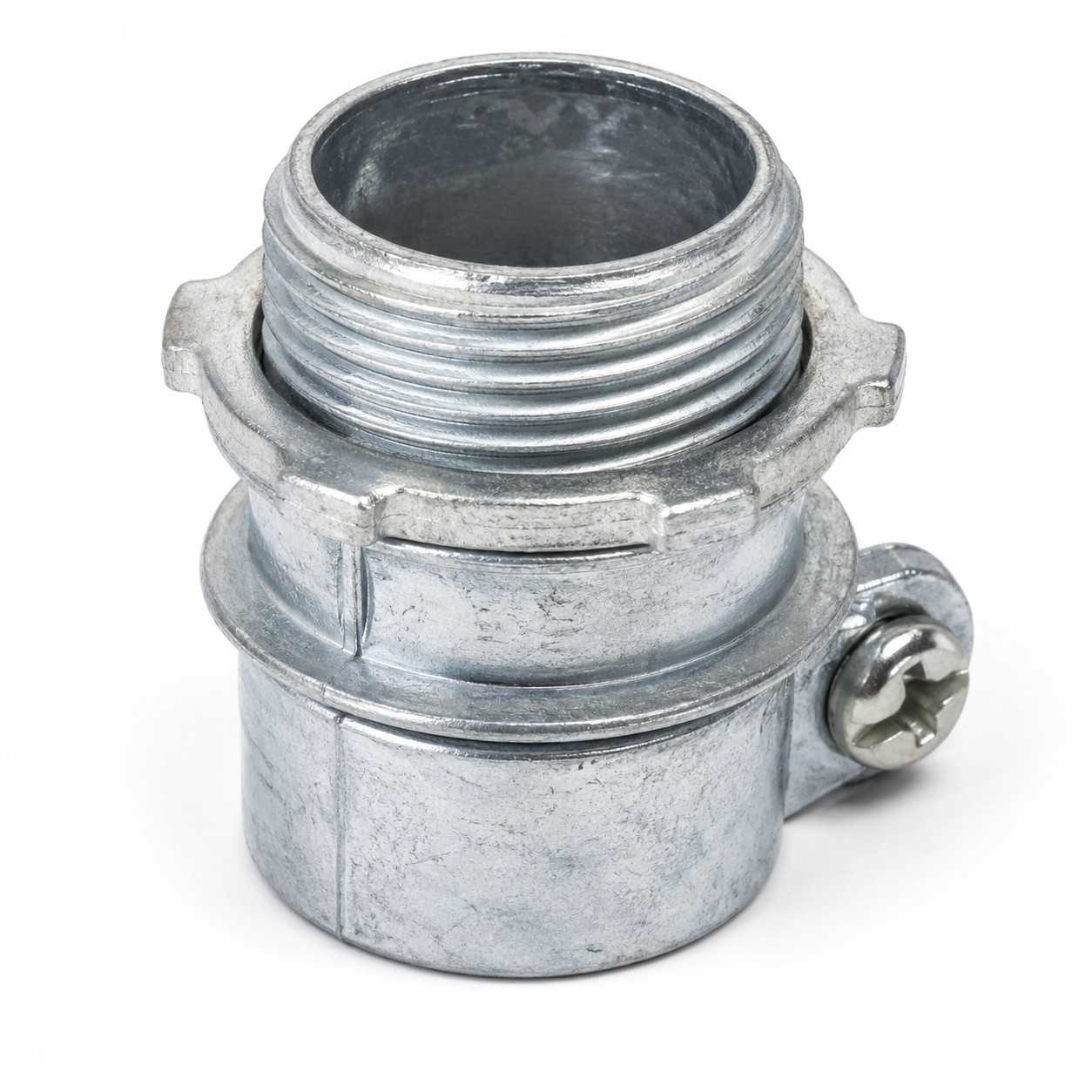

BX Straight Connector

The BX Straight Connector is manufactured from zinc die-cast with a galvanized finish for excellent durability and corrosion resistance. It features an un-insulated design and NPT threads, providing a secure and reliable connection for flexible metal conduit systems. Available in 1/2 inch, 3/4 inch, and 1 inch sizes, it is suitable for a wide range of electrical installations.

Compression Couplings

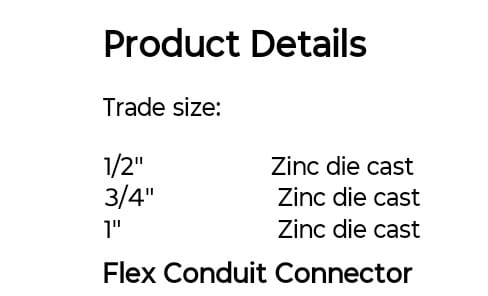

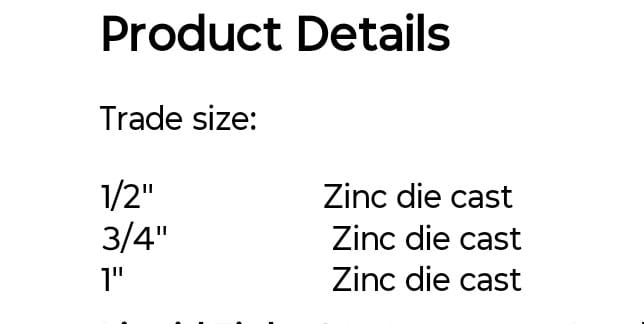

Flex Conduit Connector

The Flex Conduit Connector is manufactured from zinc die-cast with a galvanized finish for excellent durability and corrosion resistance. It features an un-insulated design and NPT threads, providing a secure and reliable connection for flexible conduit systems. Available in 1/2 inch, 3/4 inch, and 1 inch sizes, it is suitable for a wide range of electrical installations.

Technical Data

Product Specifications

Reference specifications for CAFCO EMT conduit systems. Contact CAFCO for complete and confirmed product data.

ProductCategoryMaterialFinishStandardSize RangeApplication
EMT Conduit Pipe HDG UL 797Conduit PipesSteelHot-Dip GalvanizedUL 797½" – 4"Commercial, Industrial
EMT Conduit Pipe ANSI C80.3Conduit PipesSteelPre-GalvanizedANSI C80.3½" – 4"Commercial, Residential
EMT 90° Elbow – HDGElbowsSteelHot-Dip GalvanizedContact CAFCO½" – 4"All Applications
Set Screw Connector – ZincConnectorsZinc Die-CastZinc PlatedUL 514B½" – 4"Commercial, Residential
Compression Connector – SteelConnectorsSteelSteel FinishUL 514B½" – 2"Industrial, Infrastructure
Conduit Bushing – InsulatedBushingsZinc Die-CastInsulatedUL 514B½" – 4"All Applications

Standards and certifications vary by product. Contact CAFCO for confirmation before purchase or specification.

Applications

Where Our Products Are Used

CAFCO EMT conduit systems serve a broad range of industries and project types across the region.

Commercial Buildings
Commercial Buildings
Residential Projects
Residential Projects
Industrial Facilities
Industrial Facilities
Warehouses
Warehouses
Data Centres
Data Centres
Hospitals
Hospitals
Education
Education
Infrastructure
Infrastructure
Standards & Quality

Built to International Standards

Our EMT conduit products meet internationally recognised standards to ensure safety, reliability and long-term performance.

UL 797

Underwriters Laboratories standard for electrical metallic tubing — ensures product safety, conductance and mechanical integrity for EMT conduit pipes.

ANSI C80.3

American National Standards Institute specification for zinc-coated steel electrical metallic tubing, covering dimensions, tolerances and coating requirements.

UL 514B

UL standard for conduit, tubing and cable fittings — governs set screw connectors, compression connectors, couplings and conduit bushings.

Corrosion Resistance

Hot-dip galvanized and pre-galvanized finishes provide superior protection against corrosion in harsh and humid environments.

Galvanized Protection

Both inside and outside galvanizing ensures long-term durability and protection for conduit pipes in exposed and concealed installations.

Reliable Connections

Precision-manufactured fittings ensure secure, vibration-resistant connections that maintain circuit integrity throughout the installation lifespan.
