Explore Our Flexible Conduits & Fittings

Browse our comprehensive range of Flexible Conduits & Fittings and accessories designed for professional electrical installations.

Steel Flexible & accessories.

Liquid Tight Flexible Conduit

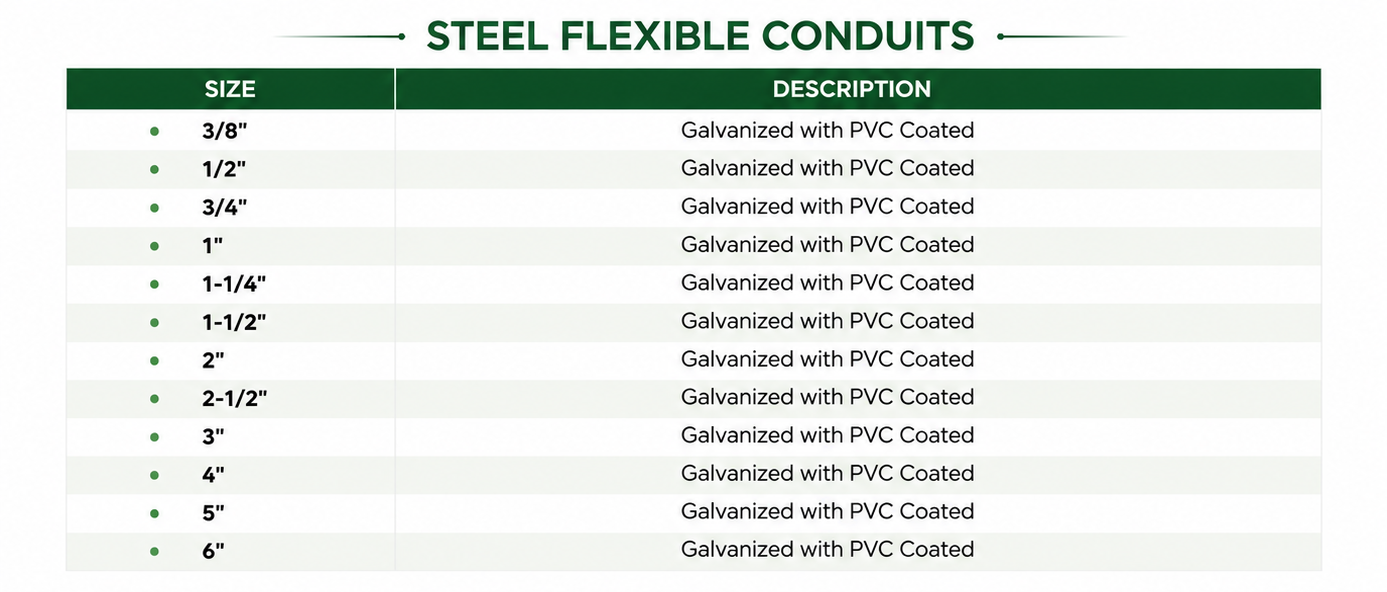

The Liquid Tight Flexible Conduit is manufactured from galvanized steel with a PVC jacket for superior durability and resistance to moisture, oil, dust, and corrosion. Available in 100 m, 50 m, 30 m, 15 m, and 10 m coil lengths and black or grey colors, it comes in sizes ranging from 3/8 inch to 6 inches, providing reliable protection and flexible cable routing for demanding electrical installations.

Liquid Tight Flexible Conduit (Grey Color)

The Liquid Tight Flexible Conduit (Grey Color) is manufactured from galvanized steel with a PVC jacket and a cord-filled insulated core for superior durability and protection. Available in 100 m, 50 m, 30 m, 15 m, and 10 m coil lengths, and in black and grey colors, it is offered in sizes ranging from 3/8 inch to 4 inches. Designed for outdoor applications, it features a sunlight-resistant PVC jacket, zinc-plated steel construction, an IP68 protection rating, and operates reliably in temperatures from -10°C to +60°C, ensuring excellent resistance to water, oil, dust, corrosion, and mechanical stress.

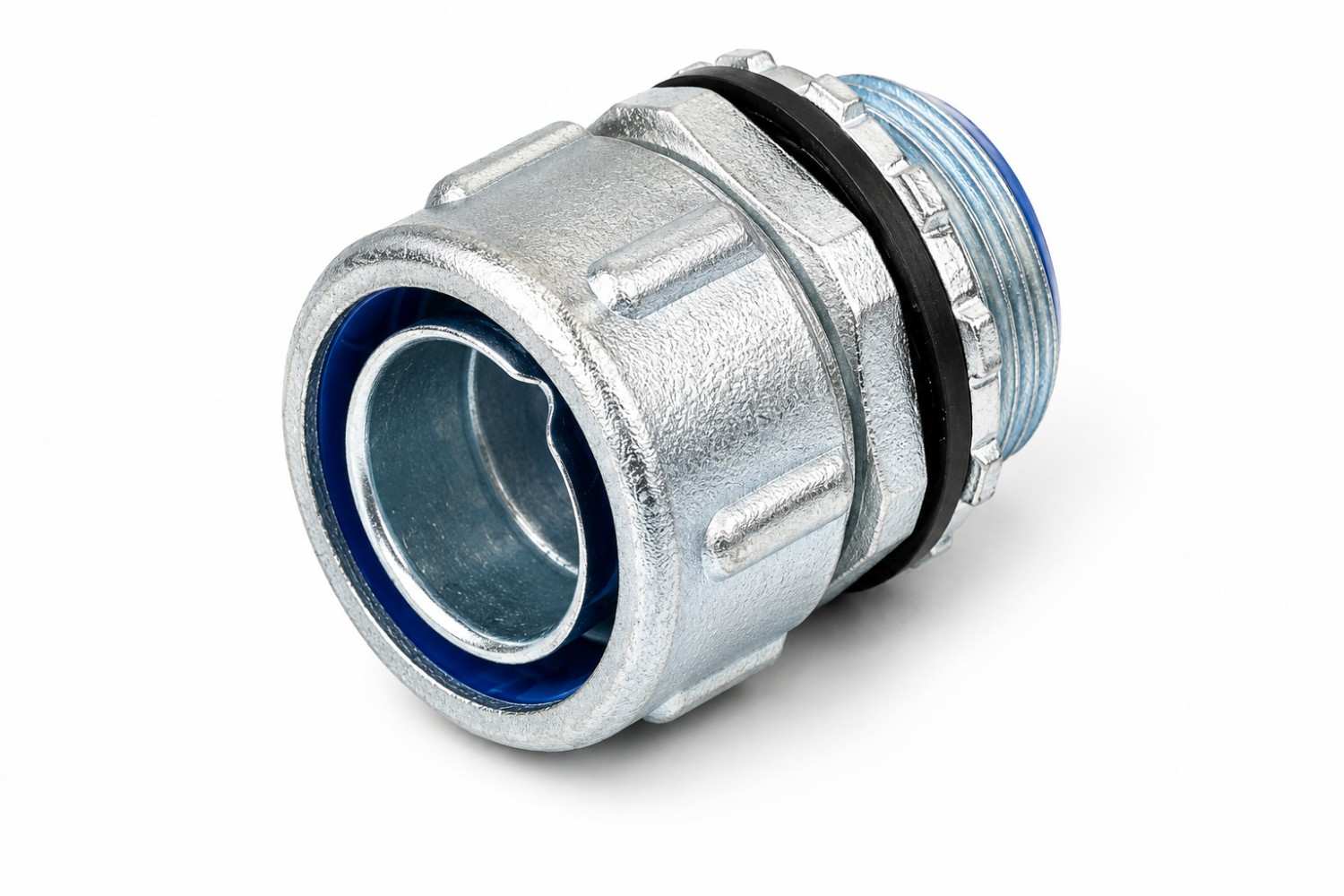

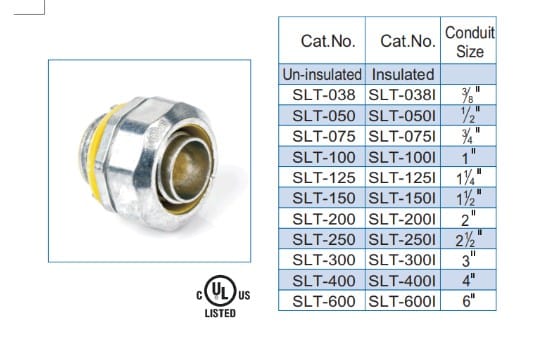

Straight Liquid Tight Connector

The Straight Liquid Tight Connector is manufactured from zinc die-cast with a galvanized finish for excellent durability and corrosion resistance. It features an insulated design with NPT threads and is available in sizes ranging from 3/8 inch to 6 inches. Supplied with a locknut and plastic sealing ring, it provides a secure, watertight connection for metallic liquid-tight conduit installations.

EMT 90 Degree Elbow (PG)

The EMT 90 Degree Elbow (PG) is manufactured from Q195 steel with a pre-galvanized finish for excellent durability and corrosion resistance. It is produced in accordance with ANSI C80.3 standards and features a non-threaded design for easy installation. Available in sizes ranging from 1/2 inch to 4 inches, it is engineered to deliver reliable performance and a precise fit within EMT conduit systems.

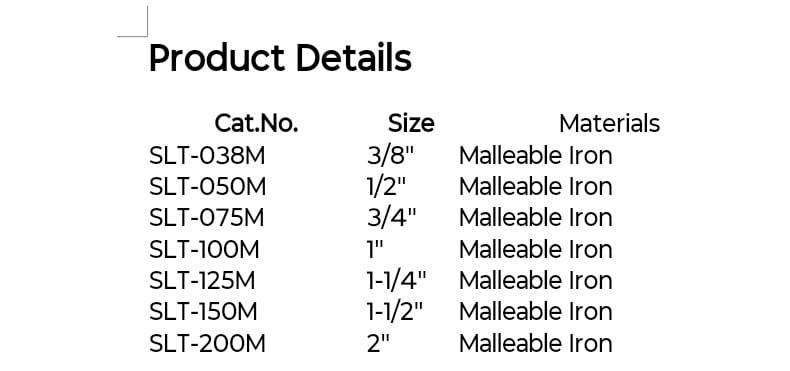

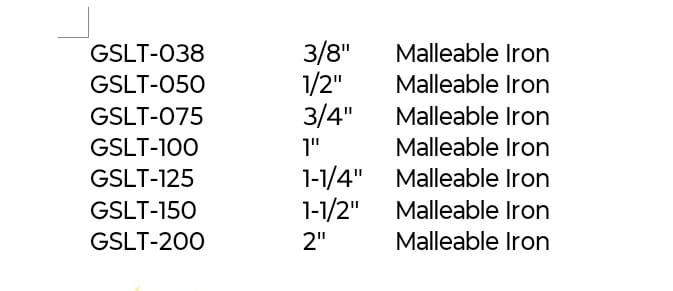

Liquid Tight Connector Straight (Malleable)

The Liquid Tight Connector Straight (Malleable) is manufactured from malleable iron with a galvanized finish for exceptional strength and corrosion resistance. Available in insulated and un-insulated types, it is produced in accordance with UL 514B standards and features NPT threads for a secure connection. Offered in sizes ranging from 3/8 inch to 2 inches, it provides reliable performance for liquid-tight conduit installations.

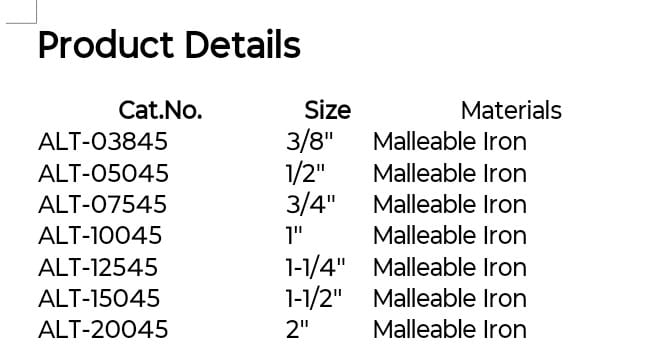

45° Liquid Tight Connector (Malleable)

The 45° Liquid Tight Connector (Malleable) is manufactured from malleable iron with a galvanized finish for exceptional strength and corrosion resistance. Available in insulated and un-insulated types, it is produced in accordance with UL 514B standards and features NPT threads for a secure connection. Offered in sizes ranging from 3/8 inch to 2 inches, it provides reliable performance for liquid-tight conduit installations.

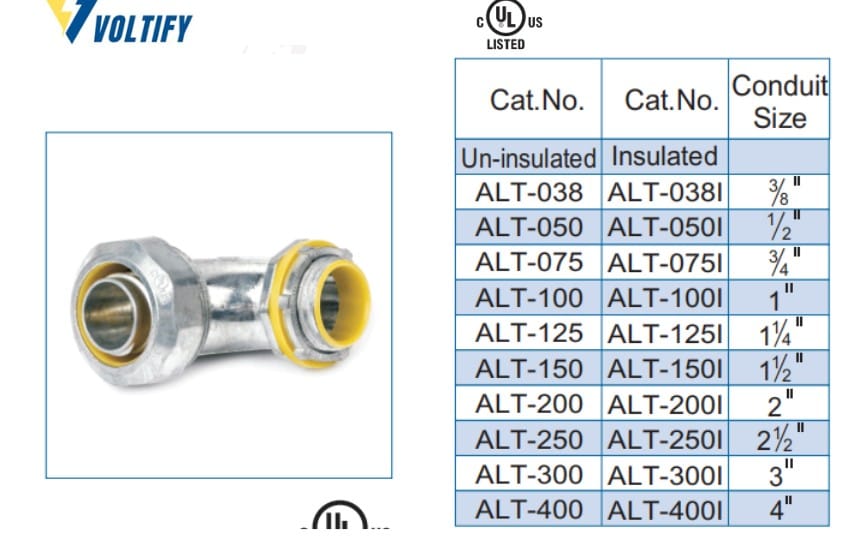

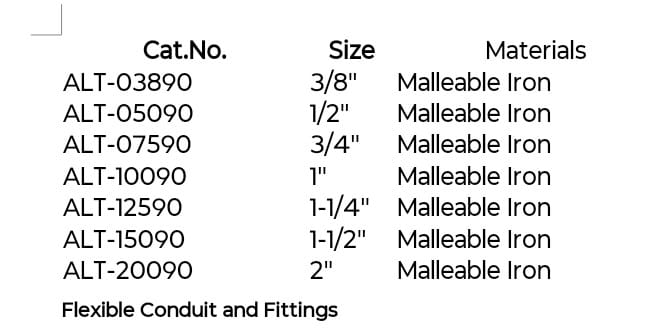

90° Liquid Tight Connector (Malleable)

The 90° Liquid Tight Connector (Malleable) is manufactured from malleable iron with a galvanized finish for exceptional strength and corrosion resistance. Available in insulated and un-insulated types, it is produced in accordance with UL 514B standards and features NPT threads for a secure connection. Offered in sizes ranging from 3/8 inch to 2 inches, it provides reliable performance for liquid-tight conduit installations.

Grounding Liquid Tight Connector Straight (Malleable)

The Grounding Liquid Tight Connector Straight (Malleable) is manufactured from malleable iron with a galvanized finish for exceptional strength and corrosion resistance. Available in insulated and un-insulated types, it is produced in accordance with UL 514B standards and features NPT threads for a secure connection. Offered in sizes ranging from 3/8 inch to 2 inches, it provides reliable grounding and dependable performance for liquid-tight conduit installations.

45° Grounding Liquid Tight Connector (Malleable)

The 45° Grounding Liquid Tight Connector (Malleable) is manufactured from malleable iron with a galvanized finish for exceptional strength and corrosion resistance. Available in insulated and un-insulated types, it is produced in accordance with UL 514B standards and features NPT threads for a secure connection. Offered in sizes ranging from 3/8 inch to 2 inches, it provides reliable grounding and dependable performance for liquid-tight conduit installations.

90° Grounding Liquid Tight Connector (Malleable)

The 90° Grounding Liquid Tight Connector (Malleable) is manufactured from malleable iron with a galvanized finish for exceptional strength and corrosion resistance. Available in insulated and un-insulated types, it is produced in accordance with UL 514B standards and features NPT threads for a secure connection. Offered in sizes ranging from 3/8 inch to 2 inches, it provides reliable grounding and dependable performance for liquid-tight conduit installations.

DPJ Type Flex to Box Male Connector

The DPJ Type Flex to Box Male Connector is manufactured from zinc die-cast with a galvanized finish for excellent durability and corrosion resistance. It features an insulated design with a hex nut and is available with G, NPT, PG, and Metric threads. Offered in sizes ranging from 3/8 inch to 6 inches, it provides a secure and reliable connection for liquid-tight conduit and flexible conduit installations.

DPN Type Flex to Threaded Conduit Adaptor

The DPN Type Flex to Threaded Conduit Adaptor is manufactured from zinc die-cast with a galvanized finish for excellent durability and corrosion resistance. It features an insulated design with a hex nut and is available with G, NPT, PG, and Metric threads. Offered in sizes ranging from 1/4 inch to 6 inches, it provides a secure and reliable connection between flexible conduit and threaded conduit systems.

DKJ Type Flex to Steel Pipe Adaptor

The DKJ Type Flex to Steel Pipe Adaptor is manufactured from zinc die-cast with a galvanized finish for excellent durability and corrosion resistance. It features an insulated design with a hex nut and a non-threaded connection compatible with EMT, IMC, and Rigid conduit. Available in sizes ranging from 3/8 inch to 6 inches, it provides a secure and reliable connection between flexible conduit and steel conduit systems.

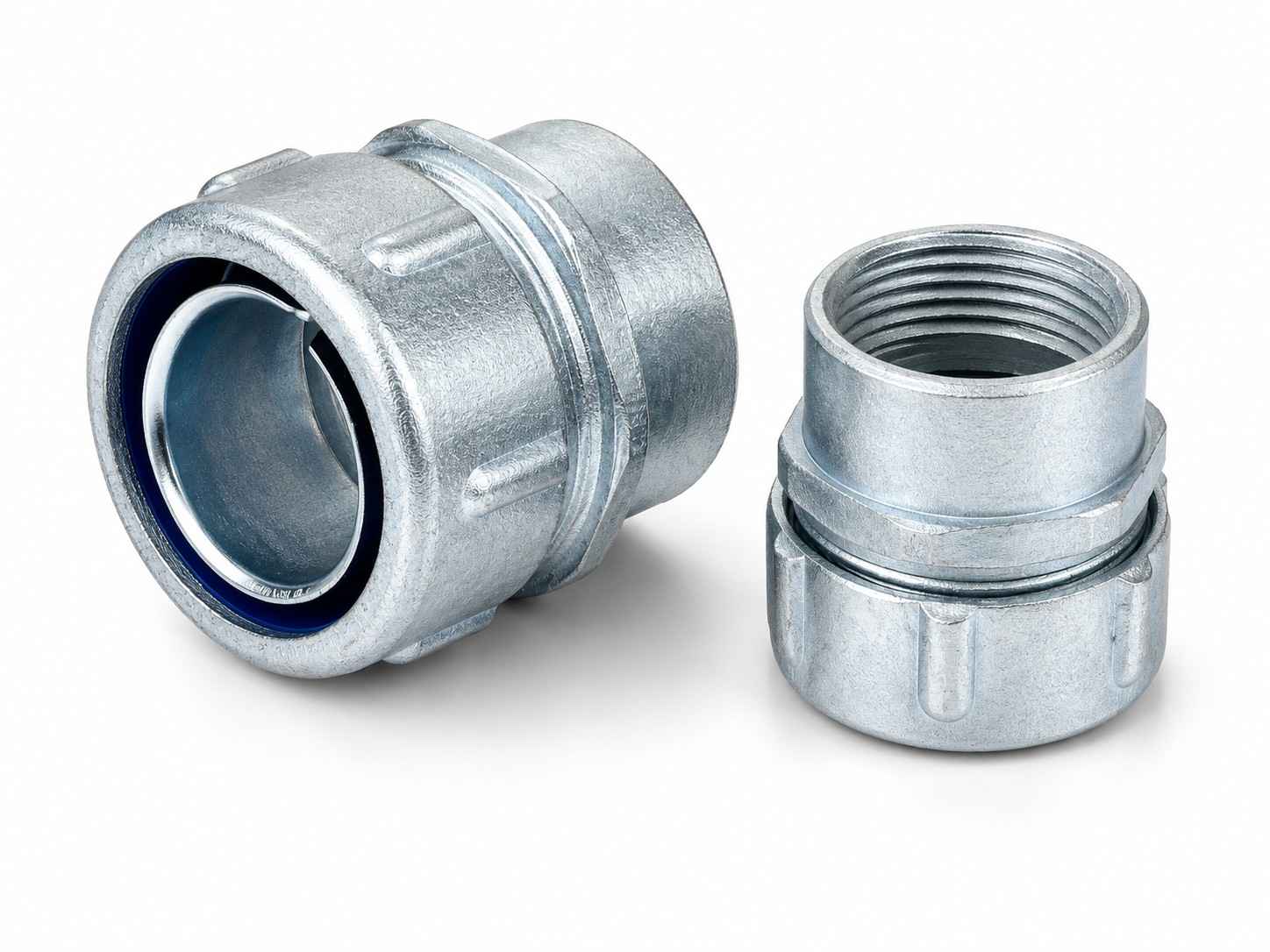

DGJ Type Flex to Steel Pipe Compression Connector

The DGJ Type Flex to Steel Pipe Compression Connector is manufactured from zinc die-cast with a galvanized finish for excellent durability and corrosion resistance. It features an insulated design with a hex nut and a non-threaded compression connection. Available in sizes ranging from 3/8 inch to 6 inches, it provides a secure and reliable connection between flexible conduit and steel conduit systems.

DGJ Type Flex to Flex Compression Connector

The DGJ Type Flex to Flex Compression Connector is manufactured from zinc die-cast with a galvanized finish for excellent durability and corrosion resistance. It features an insulated design with a hex nut and a non-threaded compression connection. Available in sizes ranging from 3/8 inch to 6 inches, it provides a secure and reliable connection between two flexible conduit systems.

DNJ Type Flex to Box 45° Connector

The DNJ Type Flex to Box 45° Connector is manufactured from zinc die-cast with a galvanized finish for excellent durability and corrosion resistance. It features an insulated design with a hex nut and is available with G, NPT, PG, and Metric threads. Offered in sizes ranging from 3/8 inch to 6 inches, it provides a secure and reliable 45° connection between flexible conduit and electrical boxes or metal enclosures.

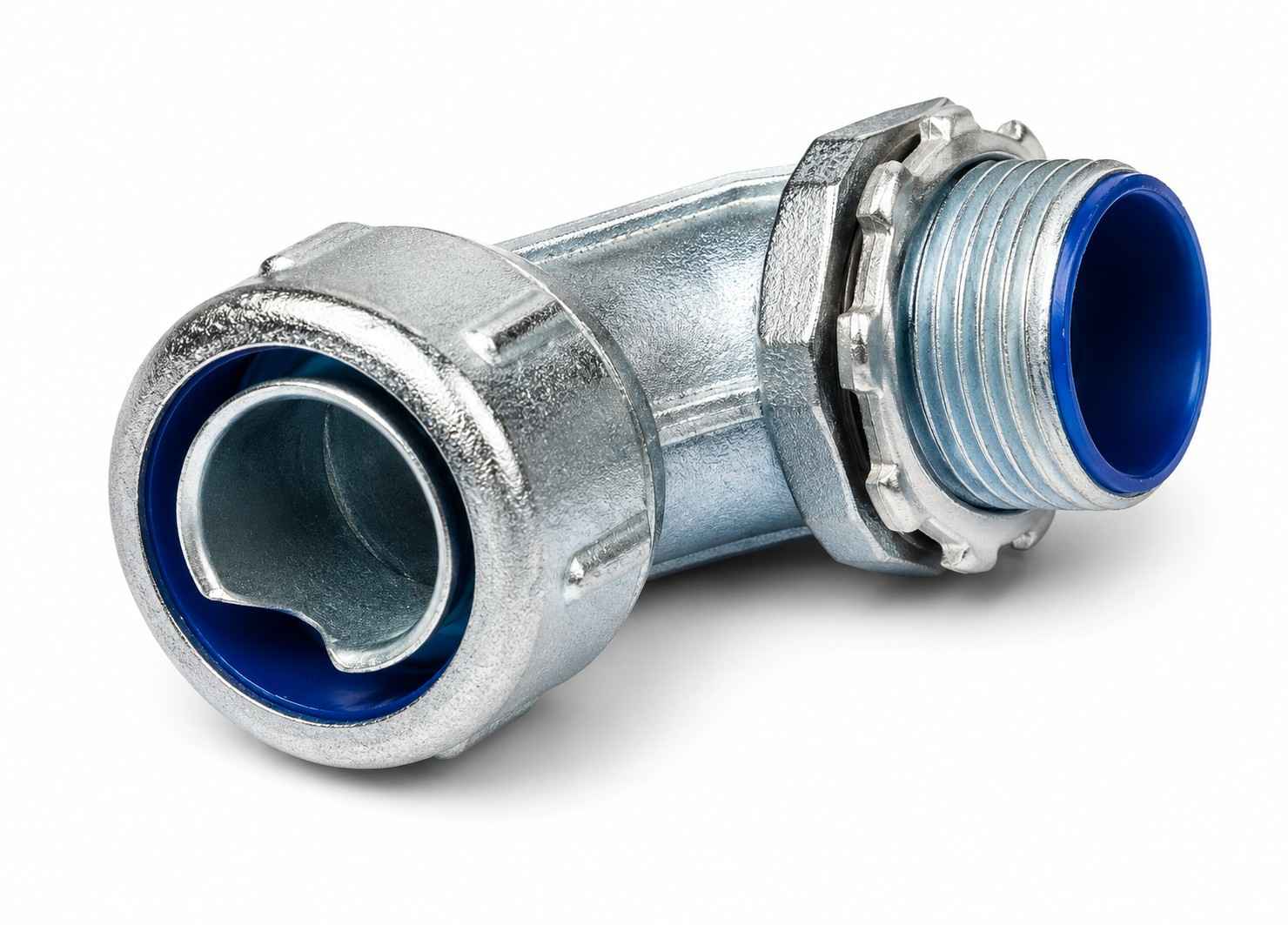

DWJ Type Flex to Box 90° Connector

The DWJ Type Flex to Box 90° Connector is manufactured from zinc die-cast with a galvanized finish for excellent durability and corrosion resistance. It features an insulated design with a hex nut and is available with G, NPT, PG, and Metric threads. Offered in sizes ranging from 3/8 inch to 6 inches, it provides a secure and reliable 90° connection between flexible conduit and electrical boxes or metal enclosures.

DPJD Type Flex to Box Male Connector

The DPJD Type Flex to Box Male Connector is manufactured from zinc die-cast with a galvanized finish for excellent durability and corrosion resistance. It features an insulated design with a quincunx nut and is available with G, NPT, PG, and Metric threads. Offered in sizes ranging from 3/8 inch to 6 inches, it provides a secure and reliable connection between flexible conduit and electrical boxes or metal enclosures.

DPND Type Flex to Threaded Conduit Adaptor

The DPND Type Flex to Threaded Conduit Adaptor is manufactured from zinc die-cast with a galvanized finish for excellent durability and corrosion resistance. It features an insulated design with a quincunx nut and is available with G, NPT, PG, and Metric threads. Offered in sizes ranging from 1/4 inch to 6 inches, it provides a secure and reliable connection between flexible conduit and threaded conduit systems.

DKJD Type Flex to Steel Pipe Adaptor

The DKJD Type Flex to Steel Pipe Adaptor is manufactured from zinc die-cast with a galvanized finish for excellent durability and corrosion resistance. It features an insulated design with a quincunx nut and a non-threaded connection compatible with EMT, IMC, and Rigid conduit. Available in sizes ranging from 3/8 inch to 6 inches, it provides a secure and reliable connection between flexible conduit and steel conduit systems.

DWJD Type Flex to Box 90° Connector

The DWJD Type Flex to Box 90° Connector is manufactured from zinc die-cast with a galvanized finish for excellent durability and corrosion resistance. It features an insulated design with a quincunx nut and is available with G, NPT, PG, and Metric threads. Offered in sizes ranging from 3/8 inch to 6 inches, it provides a secure and reliable 90° connection between flexible conduit and electrical boxes or metal enclosures.

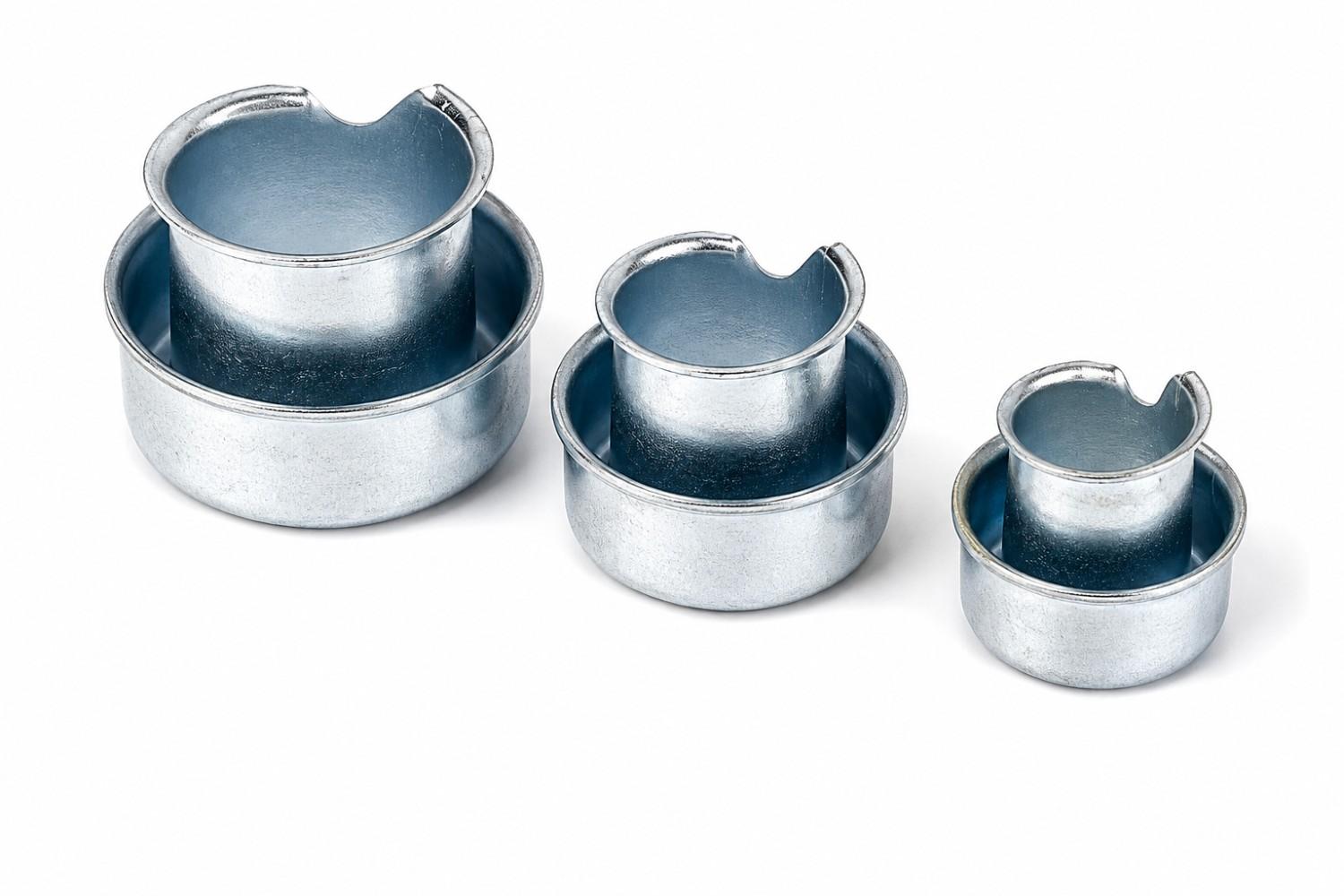

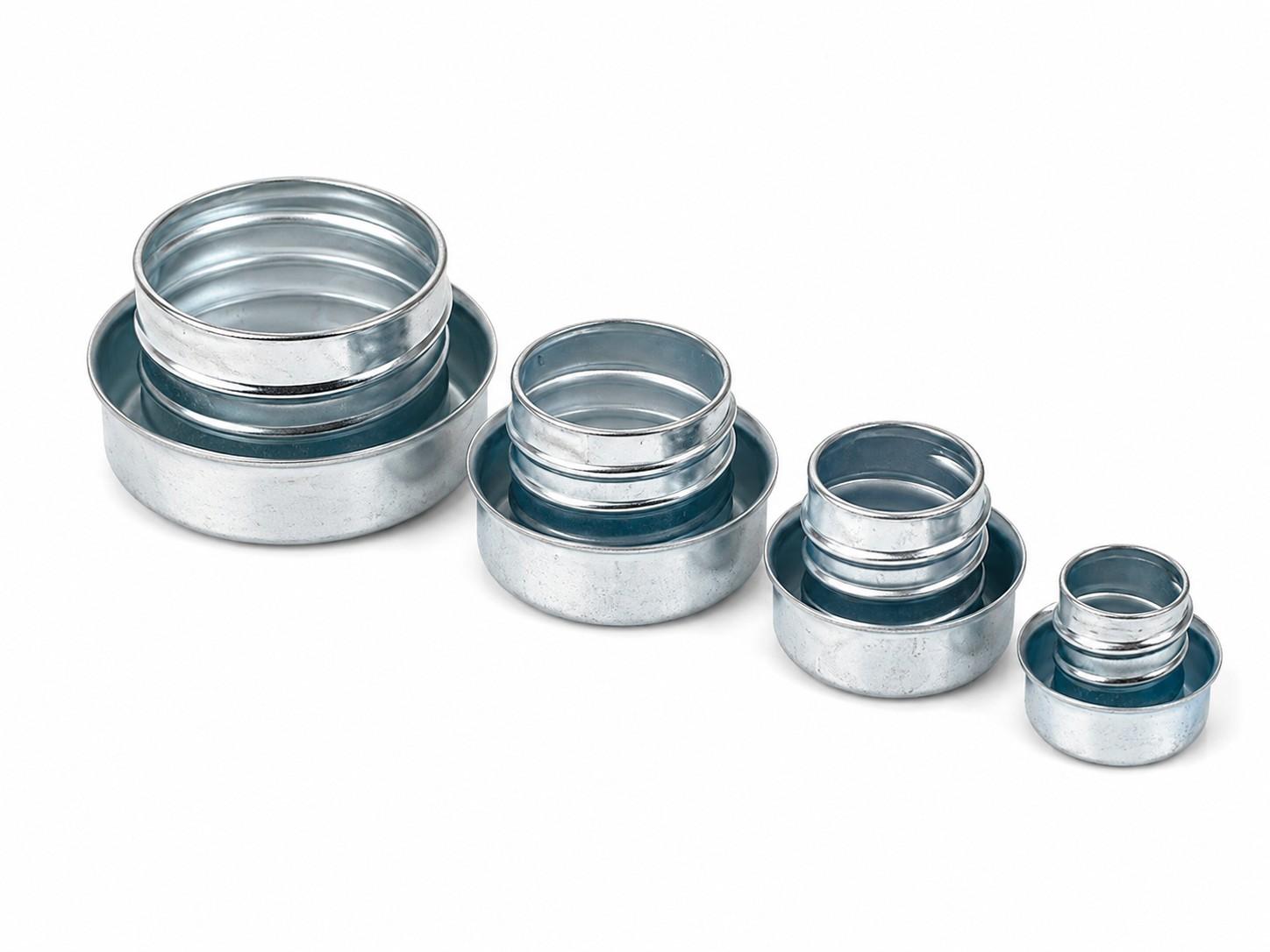

Metal Ferrule

The Metal Ferrule is manufactured from steel with a galvanized finish for excellent durability and corrosion resistance. Available in sizes ranging from 1/4 inch to 6 inches, it provides a secure and reliable solution for flexible conduit and cable protection applications.

Metal Ferrule Screw Type

The Metal Ferrule Screw Type is manufactured from steel with a galvanized finish for excellent durability and corrosion resistance. Available in sizes ranging from 1/4 inch to 6 inches, it provides a secure and reliable screw-type connection for flexible conduit and cable protection applications.

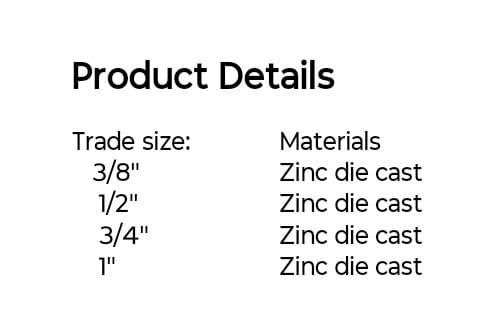

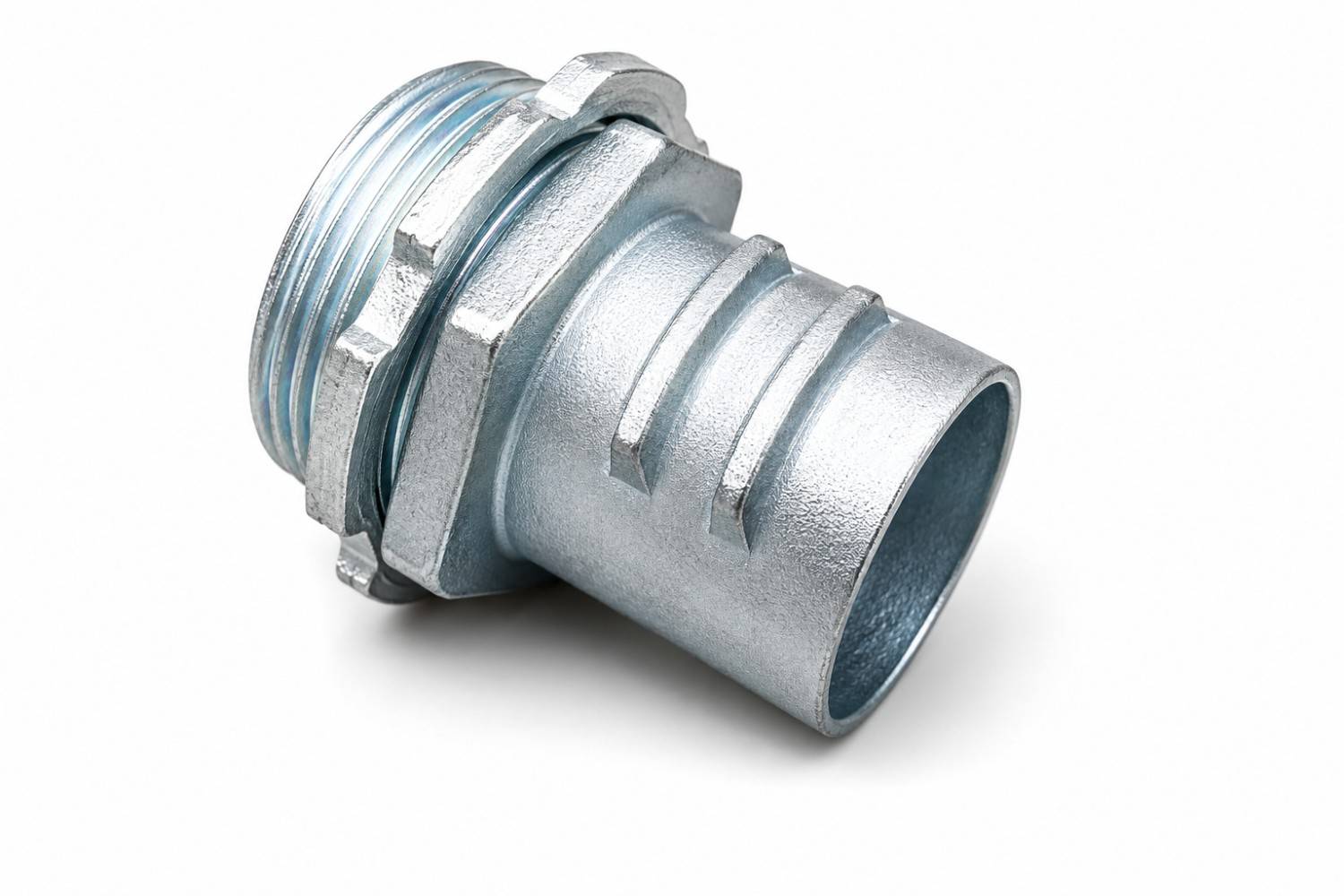

Screw In Connector

The Screw In Connector is manufactured from zinc die-cast with a galvanized finish for excellent durability and corrosion resistance. It features a non-insulated design, is manufactured in accordance with UL 514B standards, and includes NPT threads for a secure connection. Available in 3/8 inch, 1/2 inch, 3/4 inch, and 1 inch sizes, it provides a reliable solution for flexible conduit installations.

Screw In Connector Aluminum

The Screw In Connector is manufactured from zinc die-cast with a galvanized finish for excellent durability and corrosion resistance. It features a non-insulated design, NPT threads, and is manufactured in accordance with UL 514B standards. Available in 3/8 inch, 1/2 inch, 3/4 inch, and 1 inch sizes, it provides a secure and reliable connection for flexible conduit systems.

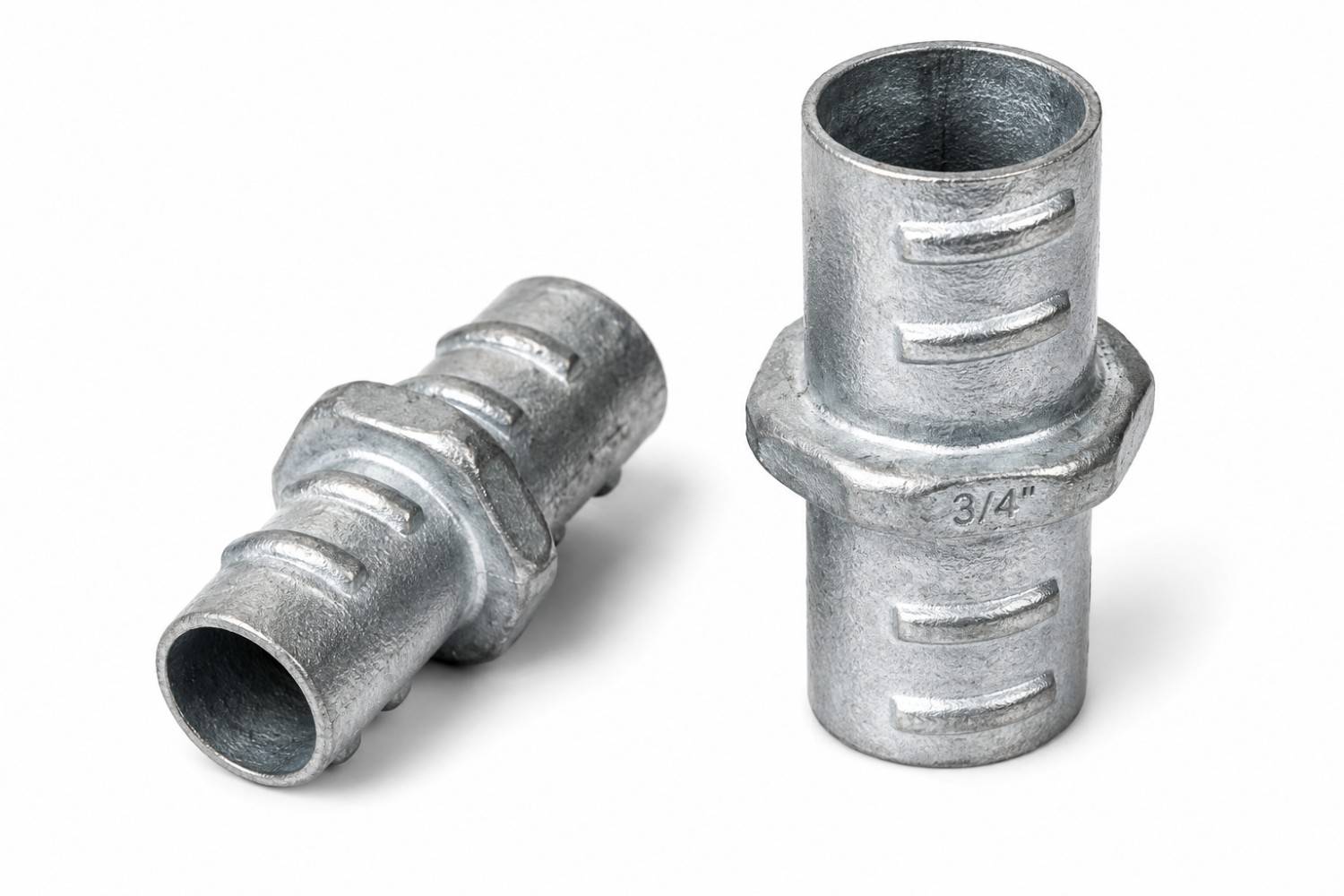

Screw-in Coupling

The Screw-in Coupling is manufactured from zinc die-cast with a galvanized finish for excellent durability and corrosion resistance. It features a non-insulated design, NPT threads, and is manufactured in accordance with UL 514B standards. Available in 1/2 inch, 3/4 inch, and 1 inch sizes, it provides a secure and reliable connection for flexible conduit systems.

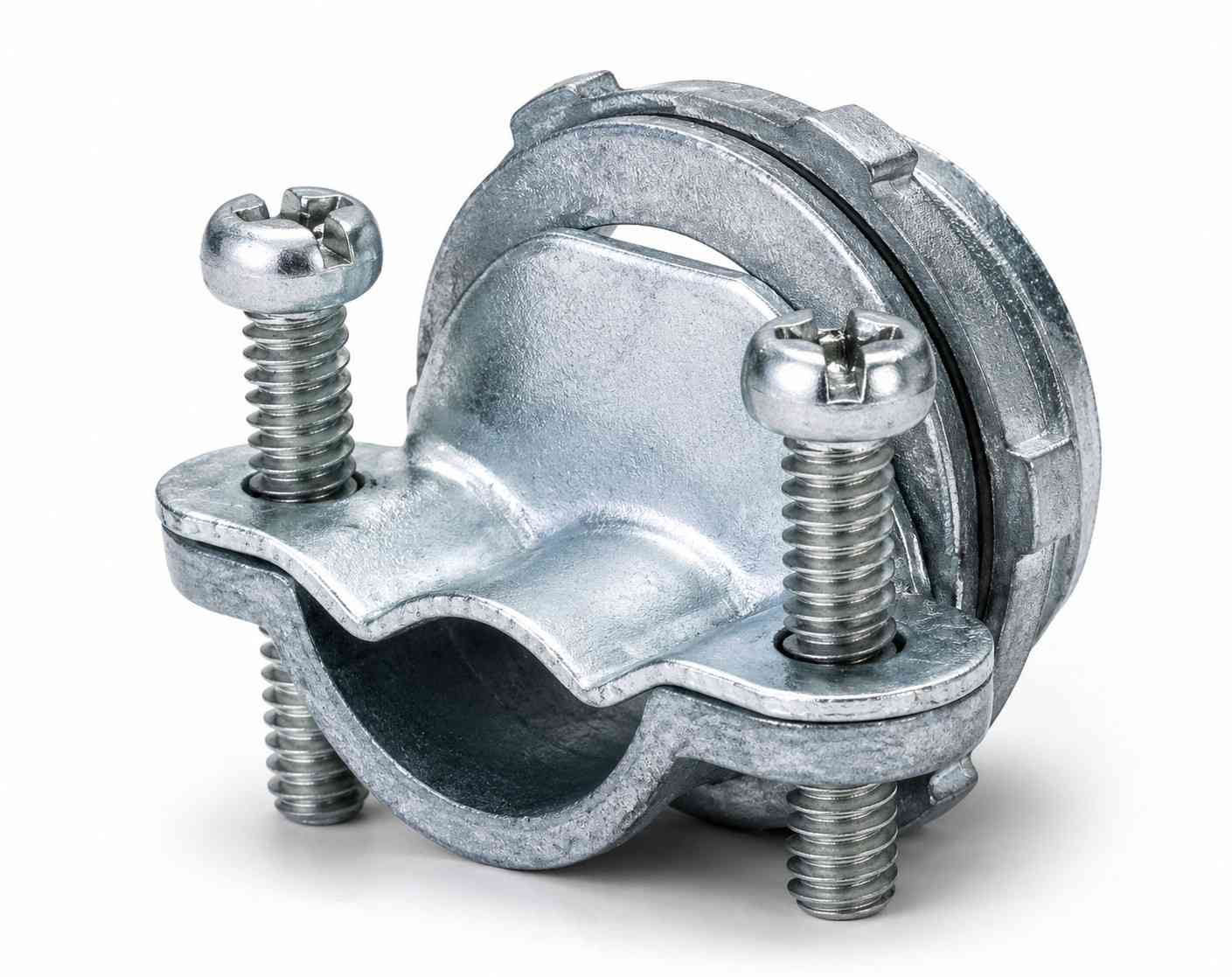

NM Cable Romex Connector

The NM Cable Romex Connector is manufactured from zinc die-cast with a galvanized finish for excellent durability and corrosion resistance. It features a non-insulated design, NPT threads, and is manufactured in accordance with UL 514B standards. Available in 1/2 inch, 3/4 inch, and 1 inch sizes, it provides a secure and reliable connection for nonmetallic sheathed (NM) cable installations.
